Shop router bits and model-specific routing templates for Trem King installation. Complete installation guides are available below for routing measurements, placement, and setup.

Router Bits

Router Bits for DIY Installation

Trem King® offers the Recommended router bits for installation of the Trem King units.  We use three different bits, depending on the job.  All Bits are carbide, 2 flute straight bits.  All Bits are made to use with a 1/4″ chuck in a plunge router.  Recommended speeds between 15,000 and 23,000 RPM.

Router Bit 45236 –  Pocket Rout.  1″ Diameter by 3/4″ Tall with a 1/4″ Shank.  Comes with six (6) 1/4″ ID x 3/8″ OD washers on the shank for use as a template guide.  Recommended for use with the Pocket Rout Template for the correct cut.  Recommended speed 15,000 RPM.

Router Bit 45491 –  Top Rout and Spring Cavity.  1/2″ Diameter by 3/4″ Tall with a 1/4″ Shank. Has top mounted bearing for template guide.  Recommended for use in cutting the start of the Top Rout and the Spring Cavity Rout.  Recommended speed 23,000 RPM.

Router Bit 45461 –  Top Rout.  1/2″ Diameter by 1-1/4″ Tall with a 1/4″ Shank. Has top mounted bearing for template guide.  Recommended for use in cutting the finish of the tele and strat Top Rout.  Recommended speed 23,000 RPM.

Options:

Template Sets

Templates for DIY Installation

Trem King® offers CNC cut templates for All necessary routing needed when installing our vibrato.  Made of high quality plexiglas and cut to exacting specs, these tools are invaluable for making the correct cut to insure the best possible fit.  Whether retro fitting or building new, our templates will help you do the most professional job.  Placement instructions included.

TKS-1 Routing Templates

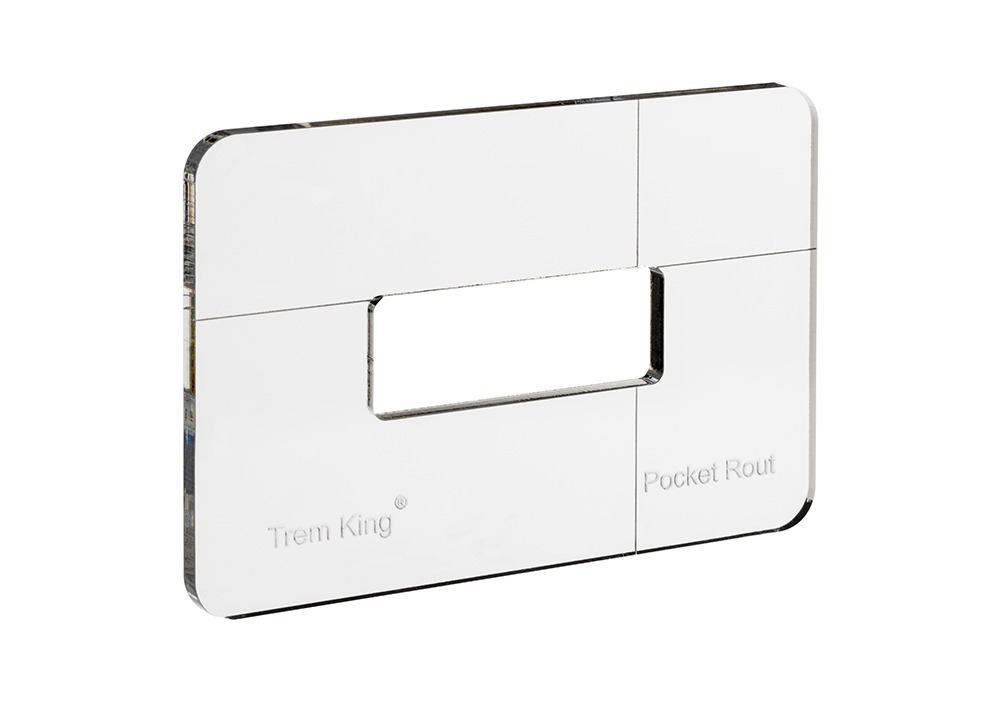

TKS-1 Pocket Rout Template

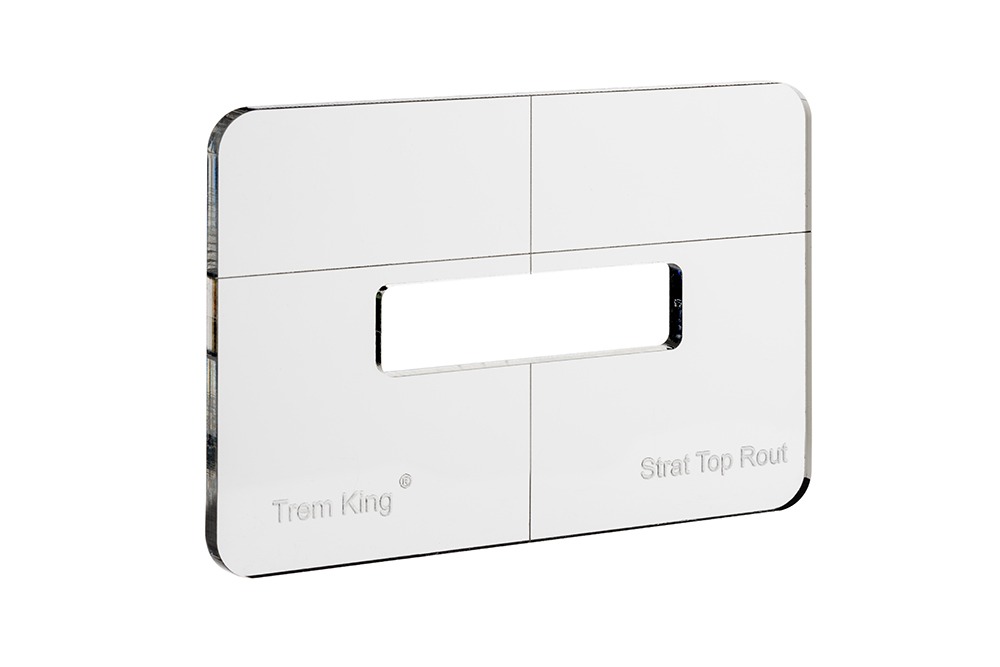

TKS-1 Top Rout Template

Top-route and pocket-route templates are available individually or as a complete set. Review the TKS-1 installation instructions to determine what is required for your installation.

Installation Template

TKS-2/3 Routing Templates

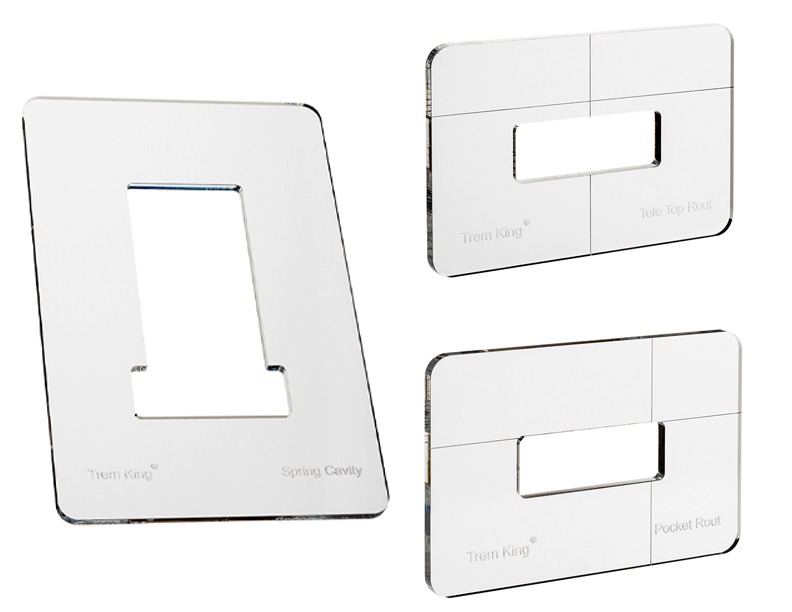

A model-specific template set for installing compatible TKS-2 and TKS-3 vibrato systems. Select the appropriate model option below.

TKS-2/3 Installation Template Options

Installation Instructions

Trem King installation requires routing and precise setup. Download the complete model-specific guide for the tools, measurements, routing diagrams, and step-by-step installation instructions.

TKS-1 Installation Guide

Complete retrofit installation instructions for compatible Strat-style guitars, including top-route and pocket-route placement, routing dimensions, hardware installation, and setup.

Download TKS-1 Guide (PDF)

TKS-2/3 Instalaltion Guide

Complete installation instructions for compatible TKS-2 and TKS-3 applications, including model-specific routing, placement, hardware installation, and setup.

Download TKS-2/3 Guide (PDF)

Looking for compatibility details or additional installation resources?
View the Installation page

Important: Routing should be performed by a qualified guitar technician or luthier. Review the complete installation guide before beginning work.
